FRONT LOAD PARTS WASHERS Ergonomics and environmental-friendliness blend nicely in Cuda's front-load line with turntables located knee-high, control panels chest-high, and a curved, recessed entry that allows for easy loading and un-loading of extra-large parts.Our space saving roll-in door allows easy access to the wash chamber and keeps the wash solution from dripping on the floor.These popular solvent-free parts washers come with automatic low-water shutoff, disc oil skimmer, convenient access to the sump and easy to reach controls for skimmer, heater and wash cycle timers and turntable on/off switch.


FRONT LOAD COMPARISON CHART

  2530 series 2840   Series 2848 Series 3648 Series 4860 Series 7200 Series
Working Height 30" 40" 48"  48" 60" 48” or 72”
Turntable Diameter 25" 28" 28" 36" 48" 72"
Load Capacity 500lbs. 1000lbs. 1000lbs. 2500lbs. 5000lbs. 5000lbs.
Dimensions 74"H x 45"W x 48"D 80"H x 50"W x 51"D 88"H x 50"W x 51"D 94"H x 49"W x 57"D 106”H x 66”W x 75D 100”Hx105”Wx85”D 125”Hx105”Wx85”D

CUDA 2530 Series Front Load Parts Washers

These front load part washers have a turntable diameter of 25 inches, and are the smallest of all HPI’s CUDA series models. These washers are equipped with a 3 HP vertical seal-less pump producing 50 GPM.
Read More

CUDA 2840 Series Front Load Parts Washers

These stainless steel front load part washers have a turntable diameter of 28 inches. These front load parts washers can hold 750 lbs. and are fitted with a 3 HP vertical seal-less pump producing 50 GPM.
Read More

CUDA 2848 Series Front Load Parts Washers

These front load parts washers have a turntable diameter of 28 inches, and can handle up to 750 lbs. These load washers are equipped with a 5HP vertical seal-less pump producing 110 GPM.
Read More

CUDA 3648 Series Front Load Parts Washers

These front load washers have a turntable diameter of 36 inches, and a load bearing capacity of 2500 lbs. These load part washers feature a 7.5HP vertical seal-less pump producing 150GPM.
Read More

CUDA 4860 Series Front Load Parts Washers

1.      These front load washers have a turntable diameter of 48 inches, and a load bearing capacity of 2500 lbs. These industrial washers are fitted with a 7.5HP vertical seal-less pump producing 200 GPM.



Read More

CUDA 7200 Series Front-Load Parts Washer

These front-load parts washers are biggest in HPI’s CUDA series. They have a turntable diameter of 72 inches, a load bearing capacity of 5000 pounds, and are fitted with vertical seal-less pumps producing 160 GPM.
Read More

TOP-LOAD OPTIONS


*Detail Brush w/Pump

*Oil Drain Container

*Detail and Power Brush

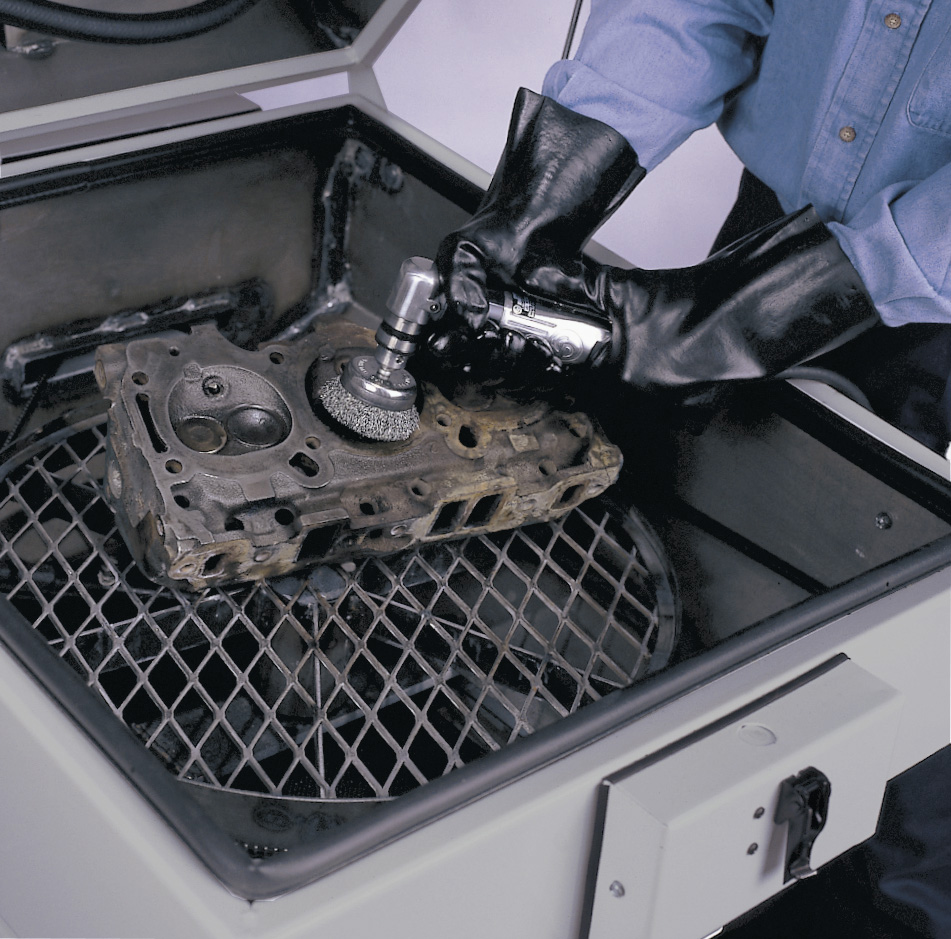

*Power Brush(Pneumatic)

*Detail and Power Brush
*24 Hour, Heater, 7 Day Timer
*24 Hour, 7 Day, Heater and Skimmer Timer


DESCRIPTION

H2O-2530

H2O-2840

H2O-2848

H2O-3648

H2O-4860

H2O-7248

Automatic Water Fill
Containment Ring, 25"
Containment Ring, 28"
Containment Ring, 36”
Containment Ring, 48"
Containment Ring, 72”
Filtration System
Filtration System w/Sump Sweep
Filtration System, 2-Stage
Filtration System w/Sump Sweep, 2-Stage
Height Extensions, 12"
Insert, 60 Mesh for Debris Screen Tray
Parts Tree, 4-Hook
Timer, Heater & Skimmer, 24 Hour, 7 Day
Timer, Heater, 24 Hour, 7 Day
Two-Tier Turntable
Oil Drain Container
Hour Meter
Light Duty Small Parts Basket (8" x 8" x 4")
Light Duty Small Parts Basket (16" x 12" x 6")
PK-100D Sump Cleaner
PK-100D Filter Bag
Evaporator, Wastewater Drum (FOB Camas, WA)
Preferred Options Package :
-Parts Tree, Small Parts Basket, Oil-Drain Container & Containment Ring
Deluxe Kit :
-Detail and Power Brush w/Side Sink & Side Sump
*Note : Two-Tier Turntable Requires Additional Extra Small Parts Basket and Containment Ring - Please Consider When Placing Orders
